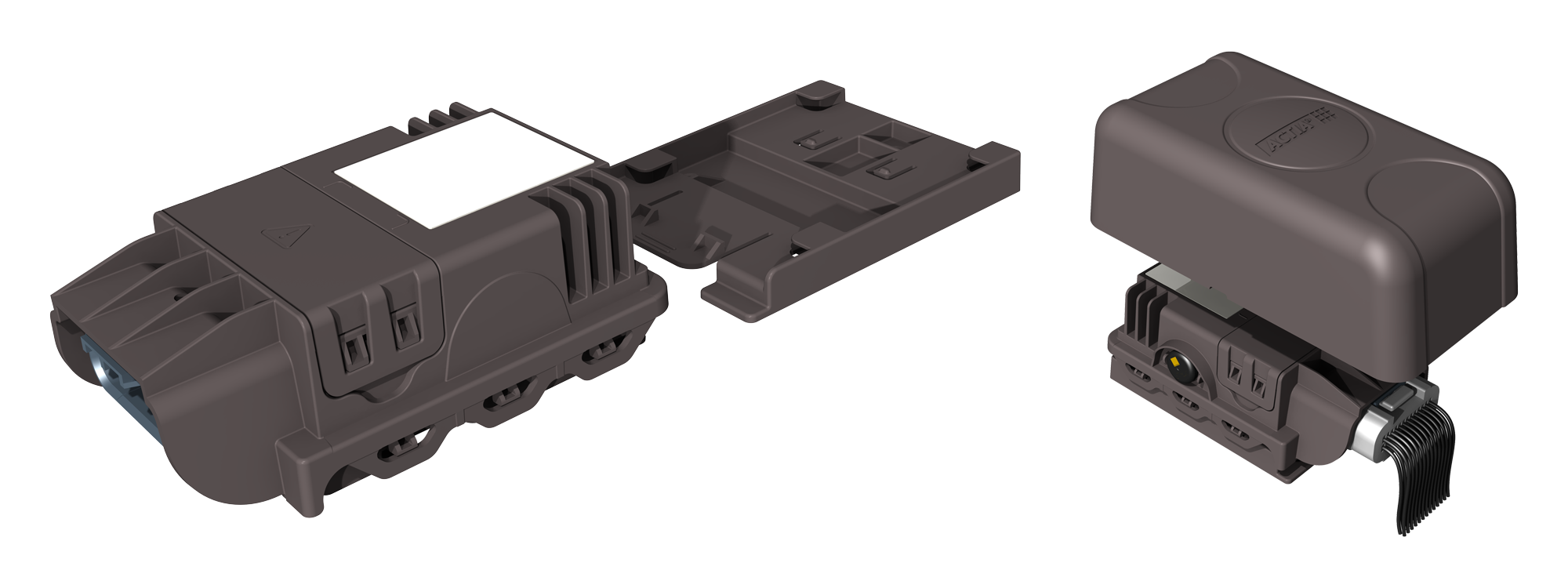

Compact telematics solution for universal applications

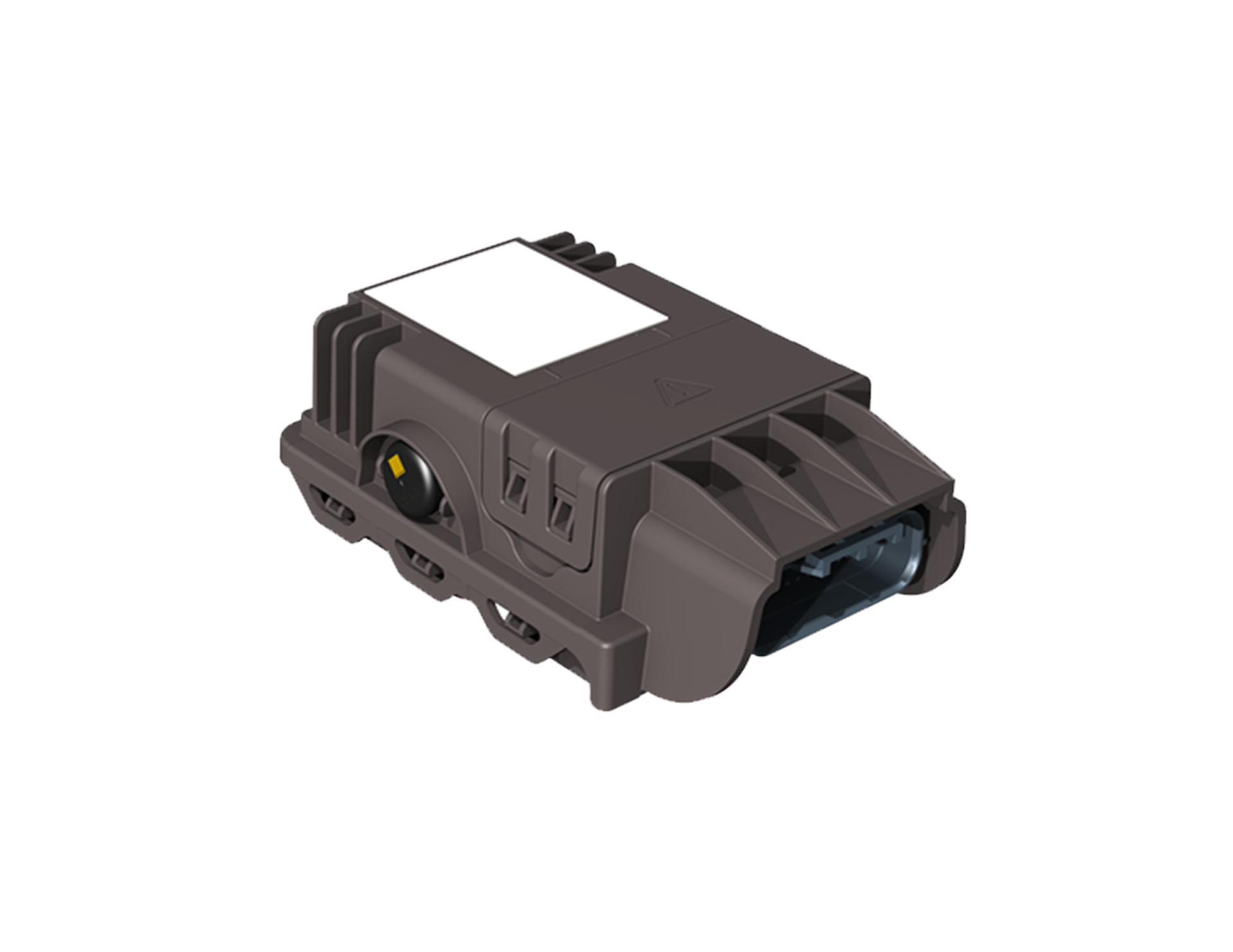

ACU6-Lite Machines targets customers that require a compact and cost effective solution for secure connectivity. ACU6-Lite supports worldwide cellular deployment in a single product variant. Together with its flexible subscription management, ACU6-Lite Machines forms part of ACTIA’s ‘end to end’ solution

Wireless:
LTE Cat M1, GNSS, Bluetooth, additional radio interfaces on request.
All antennas internal.

Network:
CAN flexible data rate (FD) interface.

Middleware:
Software Development Kit (SDK) with libraries provides full support for customer applications such as data management and processing.

Upgrade:
Software download is supported via the electrical network/s and ‘over the air’ via the cellular radio link.
Supply: ACU6-Lite operates on 12V. A backup battery ensures that critical functions continue, even if the main supply is lost and ensures clean shutdown and network de-registration.

Subscription:
Virtual MNO setup which supports global roaming with selective localisation.

Processing:
System operation is managed by the CPU which hosts a Cortex-M7 core. The CPU also hosts a 1MByte RAM. 4MByte NOR Flash is used to store the executable code. A further 8GByte eMMC is used for data storage

Security:
Secure boot supported. HSM is used for secure key storage.

Electrical interface:
ONSW digital input (KL.15 key on/off). Digital/analogue/frequency inputs (TBC). Highside output, Lowside output (TBC)

Internal sensors and indicators:
XYZ-axis accelerometer and gyro Temperature sensor. LED indicators: 1 x Red, 1 x Green, 1 x Blue
